Rubber Raw Material Machinery Continuous used tyre recycling machine
Product Show |

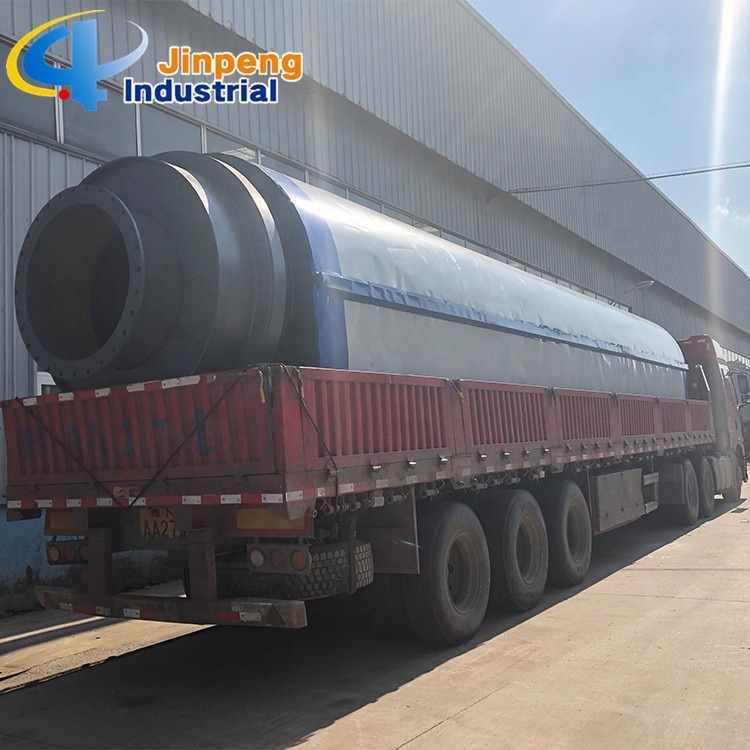

1. Product Pictures of used tyre recycling machine
2. Product Description of used tyre recycling machine
1. Main parts and function
(1)Heating system
---two heating rooms and indirect heating.
(2)Cooling system
---4 new design condensers to convert the oil gas into oil.
(3)Waste gas purifying system
---its function is to remove the acids, bad smell and dust from the waste gas, so the gas will be
more clean and environmental friendly.
(4)Smoke purifying system
---its function is to remove the acids,bad smell and dust from the smoke, so the smoke into the air
will be clean and no pollution.
(5)Carbon black discharging system
---we adopt the whole sealed automatic discharging system to ensure no carbon black flying
out,so the whole process is no pollution at all.
2. Outstanding Features
1.You just need preheat at the first time when the machine start producing.And then the machine
can produce lasting for 20days without stop.Because it can use the waste gas to heat the
chamber,no need other energy.
2.The most capacity can reach 30T/D,much bigger than other kind of plant.It is fully-automatic and
fully–continuous.
3.New design of vertical condensers.you can get high oil yield,good oil quality,high profit.
4.The carbon black and steel discharging is easier.The carbon black and big size steel can
discharge when the chamber is hot needn’t cooling down.Very save energy.
5.Low requirement on the raw materials,no need tiny granule,10cm pieces
acceptable for smooth running
3. Technical parameters
NO. | ITEM | Technical Parameter |
1 | Suitable Raw Materials<=5cm | Small pieces of Waste tyre,rubber,waste plastic<=10cm |
2 | Operating Mode | Fully Continuous Opreation |
3 | Structure | Horizontal Type |
4 | Loading and discharging | Fully automatic feeding and discharging under high temperature at same time |
5 | Capacity(24h) | 10-30Mt |
6 | Work Pressure | Slightly Negative Pressure |
7 | Oil Yield of tyres | 40%-45% |
8 | Reactor Rotation Speed | 1R/M |
9 | Power | 50-60kw/h |
10 | Cooling Method | Cycle water |
11 | Type of Drive | Sprocket Wheel |
12 | Heating Method | Hot Air |
13 | NoisedB(A) | <=85 |
14 | Main Reactor Weight(Mt) | 25Mt |
15 | Total Weight(Mt) | 30—40Mt |
16 | Installation Space Required | 48m*20m |
17 | Manpower | 2/shift |
4.Advantages
Security:
a:Adopting automatic submerged-arc welding technology
b:All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the welding shape.
c:Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d:Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming system.
Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold directly with its value.
5. After-sales service
1.Quality warranty period: One year warranty for the reactor of the pyrolysis machines,and lifetime
maintenance for complete set of machines. pay the double air tickets, accommodation and food.
2.According to the requirement of the buyer, our company sends engineers for installation and
commissioning in buyer's site including the training of skills of buyer's workers on operation,
maintenance, etc.
3.Supply layout according to buyer's workshop and land, civil works information, operation
manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with
cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
3. More Products for You to Choose
| Company Show |
1. About us
Shangqiu Jinpeng Industrial Co., Ltd, which was founded in 1985, is the first professional institute
in recycling and utilization of solid wastes (waste rubber, waste plastics, waste tyres, etc.) in
China, It is also a technology innovative demonstration enterprise involving scientific research,
manufacture and sales together. Now the company covers an area of 113,220 square meter. And
its annual sales amount are about 300 sets and total sales amount is 180 million RMB per year.
2. Why Choose
ü Advantages
Less investment in equipment, efficient performance and simple production process are the
biggest advantages of our company. According to the actual situation in every country and district,
we have the capacity of series of machines for disposing scrap tire and plastic in 4 tons, 6 tons,
10 tons, 20tons and 30 tons of different units.
ü Factory Tour
3. Our Service
Pre-sales Service:
The wide product range enables us to provide our customers with machines or complete processi
ng plants.
Based on our customers’ request and budget, our experts make efficient, reliable solutions.
Following customers’ order we produce strictly, what’s more, before placing the order every custo
mer has the chance to visit RESEM working machines or complete plant in the site.
After-sales Service:
a. We have professional service staff who are responsible for your plants besides our sales
managers and technicians.
b. Engineers available to go overseas for plant installation.
c. Quality warranty period: one year for the main reactor of pyrolysis machines and lifetime
maintenance for completing machines.
4. packing and shipping
Packaging details | 1*40FR and 1*40HQ for 10 tons 2*40 HQ for 5 tons Weight: about 30tons All goods are packed with export standard package to make sure no damage during transportation. |
Detail details | about 30 days after receiving deposit. |
5. Certifications
6. Our Markets
Our products have been sold to Thailand, Malaysia, South Korea, Indonesia, India, Pakistan,
West Africa and Taiwan district, etc.
