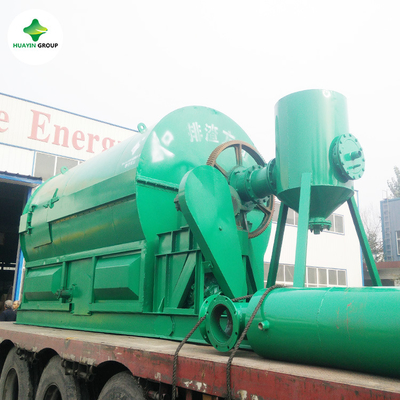

Waste Tire Pyrolysis Plant For Oiling Huayin Scrap Tire Recycling To Oil Machine Small Scale Pyrolysis Systems 1ton Per Day

Huayin scrap tyre recycling to oil machine small scale pyrolysis systems 1ton per day

Product description

Huayin waste pyrolysis plant can process the waste plastic under high temperature in a oxygen-free condition. In this process, the waste plastic is converted to fuel oil and carbon black. Moreover, you can also use this plant to dispose waste tyres, oil sludge, medical waste and so on.

Output product and usage

1. Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. or used for generators to get electricity.

2. Carbon black: used for construction bricks with clay, also can be used as fuel.

3. Steel wires: Sold or reprocessing

4. Combustible gas: Can be recycled and used during process as fuel.

Main Features

Safety:Alarm , auto pressure releasing device , and anti back fire device , vacuum pump to ensure the machine working smoothly.

Oil water separator: Its water sealing design ensures that oil and gas are separated and combustible gas can not return into the reactor.

Energy saving:

The inner reactor body and outside insulation cover have good airtightness,avoding heating loss and saving fuel.

The combustible gas will be recycled to furnace for heating the reactor,maximizing resource utilization.

The cooling water adopts circulating mode,which is pollution-free,no discharging,and recyclable.

High efficiency discharging :Adopt screw converyor discharging device , discharge carbon black in sealed condition , no pollution and save labour and time .

Integrated condensing device:All of the condensing parts have been installed together before delivery from factory , save installation time and ensure welding quality

Auto feeder machine to feed raw material automatically , save labour and time.

Service life:

Huayin takes plant performance and clients'operating methods into full account and pays attention to product design and quality to extend the plant service life,thereby increasing clients'return on investment.

Installation sites

Operation Process

Step 1: Feeding (2 hours). Feed tyres into reactor manually or with auto feeder;

Step 2: Preheating (2-4hours). Tyres gradually melts under high temperature and oil gas comes out;

Step 3: Oil producing peak (8-10 hours). Oil gas goes through the cooling system and is cooled down into liquid fuel oil; some oil gas that cannot be further cooled down into liquid fuel oil under common temperature and common pressure ("syngas") will be recycled to furnace for heating, saving your fuel;

Step 4: Cooling (4 hours). After the oil processing process is completed, leave the plant for cooling.

Step 5: Carbon black discharging (1-2 hours). Use a fully-sealed carbon black discharging system to discharge carbon black.

Step 6: Pulling out steel wire (0.5h).
