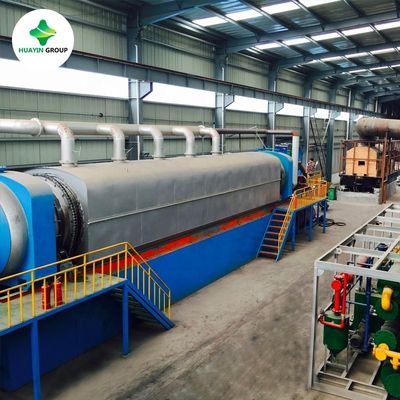

Continuous Tire Pyrolysis Plant Continuous Waste Tire Pyrolysis Plant With Stainless Steel Reactor

Continuous waste tyre pyrolysis plant with stainless steel reactor
1. Input material: Waste tire, Worn rubber, Medical wastes, MSW
2. Output products: Fuel oil, Carbon black, Syngas
3. Capacity: 5-30 ton/day
4. Machine type: Continuous type
5. Configuration: Highly automatic operation system with PLC monitor
6. Service life: 10 years
7. Certification: CE, ISO, BV
8. EU emission standard: 100% non-pollution waste tire recycling

Process Description:
The source material is continuously fed into pyrolysis reactor, where it is decomposed under heating in a primarily non-reactive environment.
1. Solid wastes (plastic/tyre/rubber) is fed by screw conveyor from the hopper.
2. The pyrolysis reactor is heated by the fuel burner. When the heat temperature rises to the set value, the decomposition process starts.
3. After the operation process is stable, heating is carried out by gas burner operating on pyrolysis gas.
4. From the pyrolysis reactor, the oil gas goes into condensers. Then it is cooled in the heat exchanger.
5. Oil gas enters the condenser, cools down to liquid while the non-condensed gas is used as fuel to sustain the heating process, enhancing its performance and significantly reducing operating cost.
6. The solid residue is discharged from the lower part of the reactor and shifted to receiving hoppers by the screw conveyor without oxygen access.

It will include four parts: water, slag, gas, noise
Water includes two parts, cooling water and de-dusting chemical water. Cooling water, just temperature higher, no pollution.
Slag, it is by-product; we can also called it carbon black. Above has mentioned the usage, please check it.

Gas includes two parts, exhaust gas and smoke dust. Exhaust gas is Methane, Ethane...these kind of gas are every easy to burning, here we make a special design could recycling it into fire furnace, heating the reactor. Smoke dust, it is generated from burning coal / wood. Through de-dusting system, it could meet the emission standard of national requirement.

Different kinds of raw material like rubber , tires , plastic can be processed by the pyrolysis machine to oil .

We can get heavy fuel oil or diesel from waste tires and plastic . We can provide SGS oil analysis report for the oil.

Huayin plants have been exported to over 50 countries including Romania , Itaian , Chile , Poland , hungary , USA, England , Thailand, Greece, Mexico , Benin , Indonesia ,Dubai , India , Singapore, Philippines , South Korea ,etc.
