Henan Qingzhan Industrial CO.,Ltd is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management.
Our company covers an area of 37,000 square meters. Our company has a huge professional technical team, including 18 senior engineers, 16 senior technicians, 28 mid-class technicians, and 82 technicians.
Our main products are divided into two catalogries: pyrolysis plant and distillation machine, including tires
pyrolysis plant, tyre pyrolysis plant, waste rubber pyrolysis equipment, waste plastic recycling machine
and other waste management machines, and waste oil distillation equipment, waste engine/motor oil recycling machine, tire oil distillation plant, plastic oil refinery machine and crude oil distillation equipment.
Our products have been exported to China, South Korea, Thailand, the Philippines, India, Malaysia, Malaysia, Myanmar, Afghanistan and the United States and other countries and regions, which obtain a better reputationand happy feedback.
We will continue to innovate and improve to give you a nice turnkey projects.

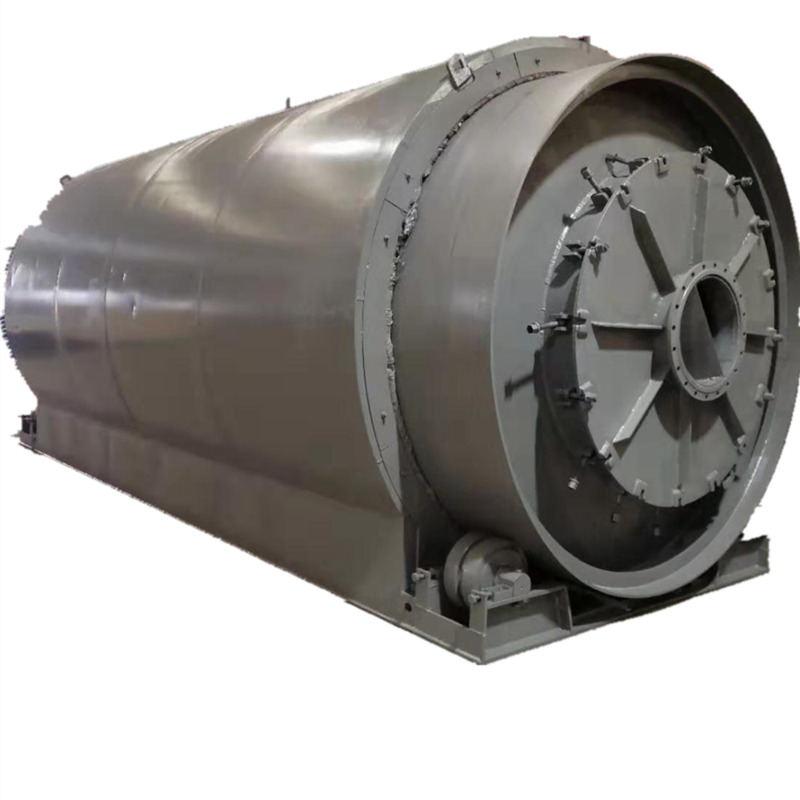

Product Description
1. During thermal cracking, the key points are adopting horizontal dual drive rotating structure, secondary catalytic pyrolysis processes and products of chemical extraction techniques. The adoption of new catalyst formulations group successfully solves the issue of bad smell and color. The equipment design is reasonable, has advanced manufacturing technology, uses high degree of automation, and safety facilities.
2.Waste gas & water
a.Waste gas:
Was gas during process will be managed through two safe devices: water seal and burning air nozzle to make sure gas be totally reused as fuel. That not only eliminates danger, but also save energy. For smoke dust discharge, we apply series machines of ZTC desulphurization and dust remover which can ensure gas consists of water and CO2 to meet environment standard. There is no waste gas pollution.
b.Waste liquid:
In the process of waste gas management, use small amount alkaline water to make acidic gas neutralization and then liquid evaporates during whole pyrolysis processing.There is no waste liquid pollution.
c.Waste solid:
Main solids consist of carbon black and steel wire as tire for example. Carbon black will be automatically sent out from taphole and can be used as fuel to heat the reactor or sell. Carbon black and steel wire can make benefit and energy-saving. So there is no waste solid.
3. Oil extraction
**Tire (oil extraction): 45%
**Plastic and products based plastic (oil extraction): 65%
**Rubber and products based rubber (oil extraction): 50%
Will get final products(raw material: tire for example):
**Heavy crude oil: 45%
**Carbon black: 37%
**Steel wire: 13%
**Gas: 5%
4.Technical data
|
Model |
LJ-30 |
|
|
1 |
Raw material |
Tire/plastic/rubber |
|
2 |
Structure form |
Horizontal |
|
3 |
Capacity |
30 tons raw material |
|
4 |
Oil extraction |
13.5 tons |
|
5 |
Work pressure |
Atmospheric |
|
6 |
Host speed |
0.4r/d |
|
7 |
Power |
40kw |
|
8 |
Cooling |
Water cooling |
|
9 |
Lose water(T/h) |
0.2ton |
|
10 |
Transport |
Belt drive |
|
11 |
Heating method |
Directly |
|
12 |
Installation |
Foundation |
|
13 |
Noise dB(A) |
85 |
|
14 |
Dimension |
(Dia)2800*(L8800) |
|
15 |
Working form |
continuous |
|
16 |
Packing |
3* 40HQ+1*40FR |
|
17 |
Area need |
1000 square meters |
Our service
We can send our engineer to your side for guiding the installation and training your workers operation.
Package and shipping
2*40HC, seaworhty
