Pyrolysis machine is designed for recycling waste tire/plastic/rubber into fuel oil to replace landfill or incineration which causes serious environmental pollution. The main output product is fuel oil that finds good market in industrial field.

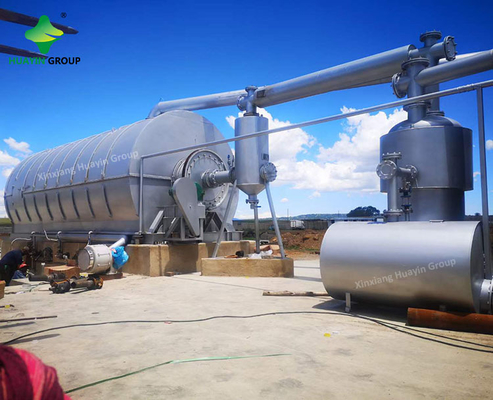

Detail images of waste tyre recycling to oil pyrolysis machine
Safety:Alarm , auto pressure releasing device , and anti back fire device , vacuum pump to ensure the machine working smoothly.
Oil water separator: Its water sealing design ensures that oil and gas are separated and combustible gas can not return into the reactor.
Energy saving:
The inner reactor body and outside insulation cover have good airtightness,avoding heating loss and saving fuel.
The combustible gas below C4(oil and gas that cannot be further cooled down into fuel oil under normal temperature and pressure)will be recycled to furnace for heating the reactor,maximizing resource utilization.
The cooling water adopts circulating mode,which is pollution-free,no discharging,and recyclable.
High efficiency discharging :Adopt screw converyor discharging device , discharge carbon black in sealed condition , no pollution and save labour and time .
Large condensing area ensure high oil yiled.
Auto feeder machine to feed raw material automatically , save labour and time.
Motor:All of the motors can be customized.
Output product ---Fuel oil
Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc.
Carbon black can be made into pellets for making new rubber products.
Steel wire could be sold to the recycle station or steel mill for remelting.
The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.
|
Model |
HY-05 |
HY-08 |
HY-10 |
HY-12 |
|
Raw material |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
|
Daily Handling capacity |
5 tons |
8 tons |
10 tons |
12 tons |
|
Working pressure |
Normal pressure |
Normal pressure |
Normal pressure |
Normal pressure |
|
Main engine rotating speed |
0.4R /min |
0.4R /min |
0.4R /min |
0.4R /min |
|
Power |
15KWH |
15KWH |
15KWH |
15KWH |
|
Floor Area |
200m2 |
250m2 |
300m2 |
300m2 |
|
Machine dimension(mm) |
D2200*L5000 |
D2200*L6600 |
D2600*L6600 |
D2800*L6600 |
HUAYIN equipment has been exported to over 70 countries including Romania, Hungary, Turkey, Slovakia,Ecuador, Guatemala, Haiti, Mexico, Peru,Canada , USA,Jordan, UAE, Lebanon, Kuwait, Italian , Chile , Poland , England , Thailand, Greece, Mexico , Benin , Indonesia , India , Singapore ,Russia etc.
We will send engineer to your place to provide technical service in guiding: Installation, Test running ,Worker training.
Besides ,Installation preparation manuals will be sent to you so that you can do relevant preparation work before our engineer arrives.
3D drawing, layout drawing and foundation drawing may be provided based on your land size and other specific requirements.
