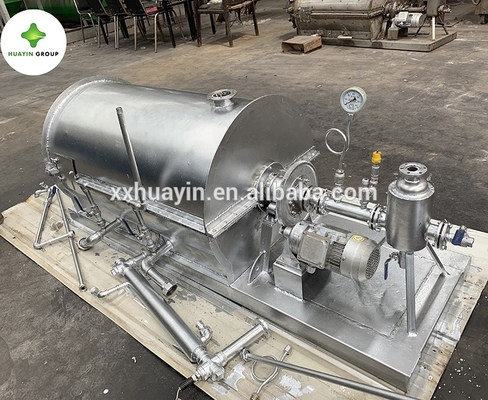

This is our smallest demo running waste plastic tire pyrolysis to oil machine. you can put 10kg waste materials into the reactor, after 1-2hours, the oil will come out.
In 2015 before chinese lunar new year, we sent this machine to our Brazil client. now they are doing the custom clearance.
The raw material would be various, like plastic, tyre, oil sludge, aluminium foil. Through this machine, you can get plastic oil, carbon black and syngas which can be recycled to the furnace to heat the reactor again. Through this machine, you can get plastic oil, carbon black and syngas which can be recycled to the furnace to heat the reactor again.
Input raw material
Output product
1. Very convenient for showcasing&testing, shorter processing time;
2. Easy to operate and maintain;
3. Covering little space;
4. One labor would be ok;
5. Easy loading&unloading&transportation.
|
Raw Material |
Oil Yield |
|
PP(microwave oven food box,yogurt bottles,ect.) |
50%-75% |
|
PE(plastic film/ plastic wrap) |
50%-75% |
|
PS(fast food box/instant noodles boxes) |
50%-75% |
|
ABS(engineering plastics) |
40% |
|
Leftovers of paper |
Wet 15%-20% dry 60% |
|
House garbage |
35%-50% |
|
Plastic cable |
80% |
|
Plastic bags |
50% |
|
Submarine cable |
75% |
|
Rubber cable |
35% |
|
Soles |
30% |
|
Big tires |
45%-50% |
|
Small tires |
35%-40% |
|
PVC(raincoat/building material) |
Not applicable |
|
PET(mineral water bottles/sodas beverage bottles) |
Not applicable |
1. Client use it to do a trail for different kinds of raw materials to test the oil yields.
2. Client use it as a running model to show their customers .
3. Clients use it also as a model to show their government to appy a running license.
4. This Small Pyrolysis Plant is suitable for these clients who also start doing this project and use it as a try.
Technology Details of 10KG Machine
|
Reactor’s thickness |
16mm |
|
Reactor’s material |
Stainless steel |
|
The diameter of cooling pipe |
15mm |
|
The thickness of water sealing |
2-3mm |
|
Heating method |
Direct heating |
|
Heating fuel |
Coal, oil, gas |
|
Cooling method |
Recycling water |
|
Exhaust system |
Dedust system |
Using two wood boxes to load the whole plant. Using one wood box to load the reactor and using one wood box to load the cooling system.
